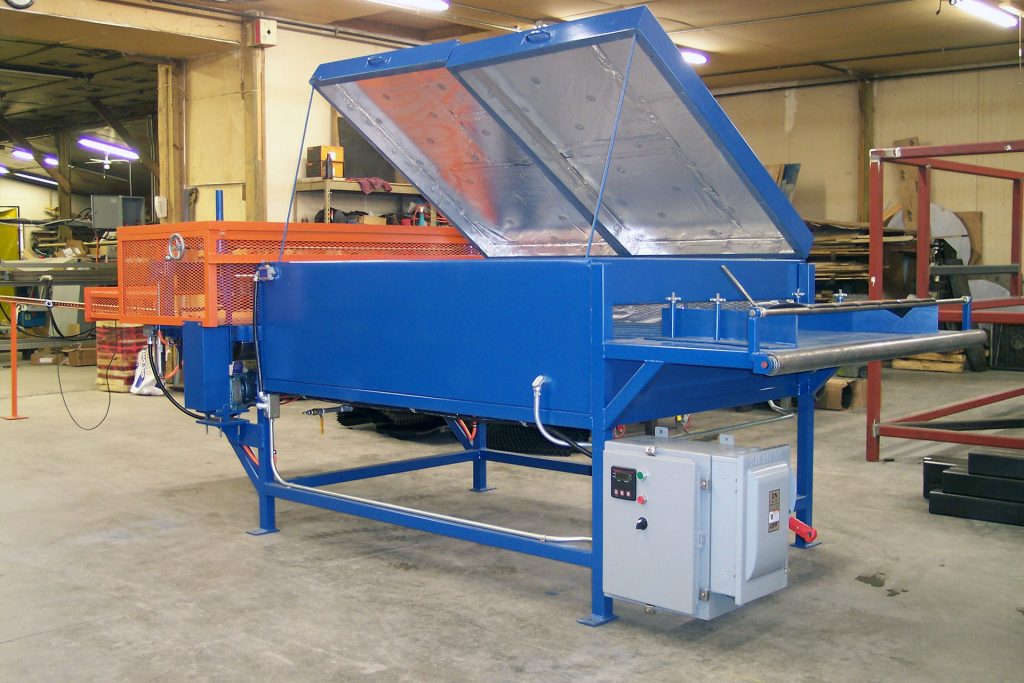

Expander I - Description and Specifications
The Expander I is designed specifically for the purpose of expanding continuous paper honeycomb. The Expander is fed from the core pallet and the core is then pulled through the machine by the use of Pull Rollers. The core is expanded and heated to hold the expansion and then cut to desired lengths.
The Expander has several important features, such as Electric Heat, Guillotine cut with a die Rule Knife Blade, Digital Temperature Controller, Digital Speed Controller, Mechanical Length Control Photo Eye, Pull Rollers and is insulated.
The Expander will produce at a rate of 3 meters per minute with a maximum panel width of 1.2 meters and a maximum core height of 100mm. The electrical specification is as customers request.
